The SunCatcher is a 25-kilowatt-electrical (kWe) solar dish Stirling system designed to automatically track the sun and collect and focus solar energy onto a PCU, which generates electricity. The system consists of a solar concentrator in a dish structure that supports an array of curved glass mirror facets. These mirrors collect and concentrate solar energy onto the solar receiver of the Power Conversion Unit (PCU).

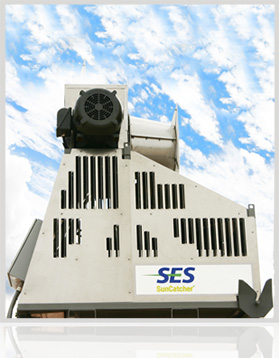

Power Conversion Unit (PCU)

The PCU converts the focused solar thermal energy into grid-quality electricity. The conversion process in the PCU involves a closed-cycle, high-efficiency four-cylinder, reciprocating Solar Stirling Engine utilizing an internal working fluid that is recycled through the engine. The Solar Stirling Engine operates with heat input from the sun that is focused by the SunCatcher’s dish assembly mirrors onto the PCU’s solar receiver tubes which contain hydrogen gas. The PCU solar receiver is an external heat exchanger that absorbs the incoming solar thermal energy. This heats and pressurizes the gas in the heat exchanger tubing, and this gas in turn powers the Solar Stirling Engine.

A generator is connected to the Solar Stirling Engine; this generator produces the grid-quality electrical output of the SunCatcher. Waste heat from the engine is transferred to the ambient air via a radiator system similar to those used in automobiles. The gas is cooled by a radiator system and is continually recycled within the engine during the power cycle. The conversion process does not consume water, as is required by most thermal-powered generating systems.
